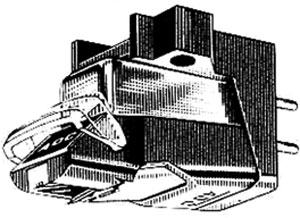

ADC QLM32 MKIII tű (RSQ32)

SPECIFICATIONS:

• Output voltage: 7.8 mV per channel at 1 kHz.; 5 cm./sec. peak recorded velocity.

• Channel balance: 2.0 dB at 1 kHz.

• Channel separation: 20 dB at 1 kHz.

• Frequency response: 20-20 kHz ą 2 dB.

• Tracking ability: 80 ľm at 315Hz at recommended tracking force.

• Stylus type: Elliptical.

• Stylus tip radius: 0.4 mil. x 0.7 mil. Elliptical

• Recommended tracking force: 3.0 grams.

• Typ.: 89009,  RP 32, Cikkszám: 10058

• Tracking angle: 20°.

• Optimum load: 47, 000 ohms resistance in parallel with 275 to picofarads total capacitance.

• Cartridge weight: 5.75 g.

• Mounting: Standard 1/2″ (12.7mm) Mounting Centers.

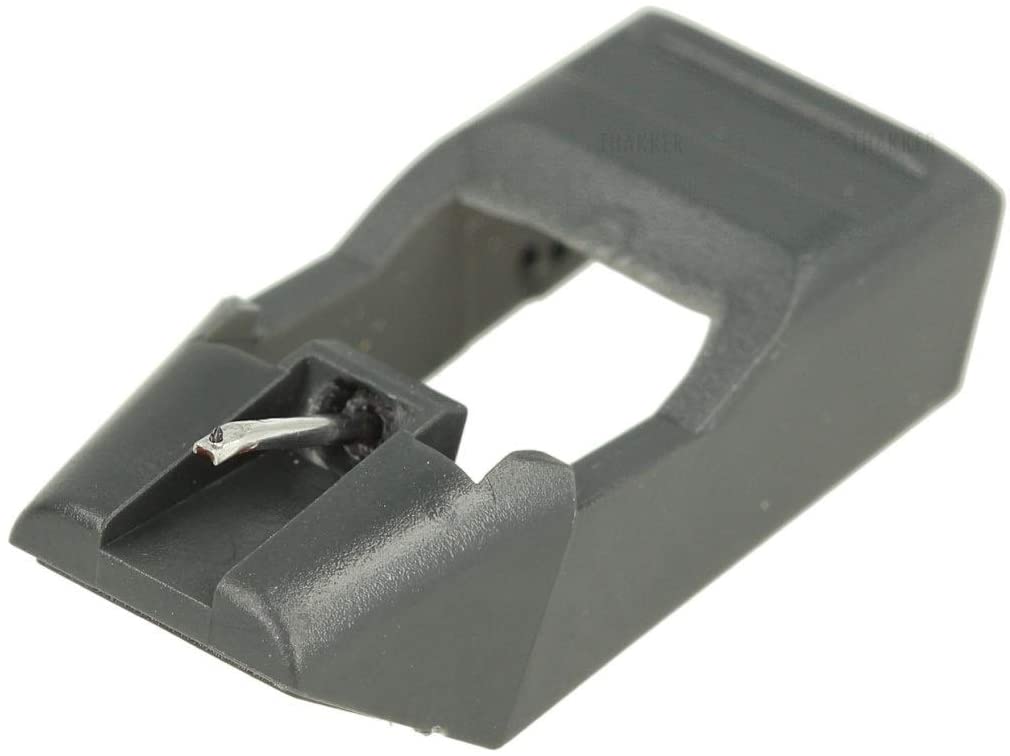

• Replacement stylus: RSQ32.
