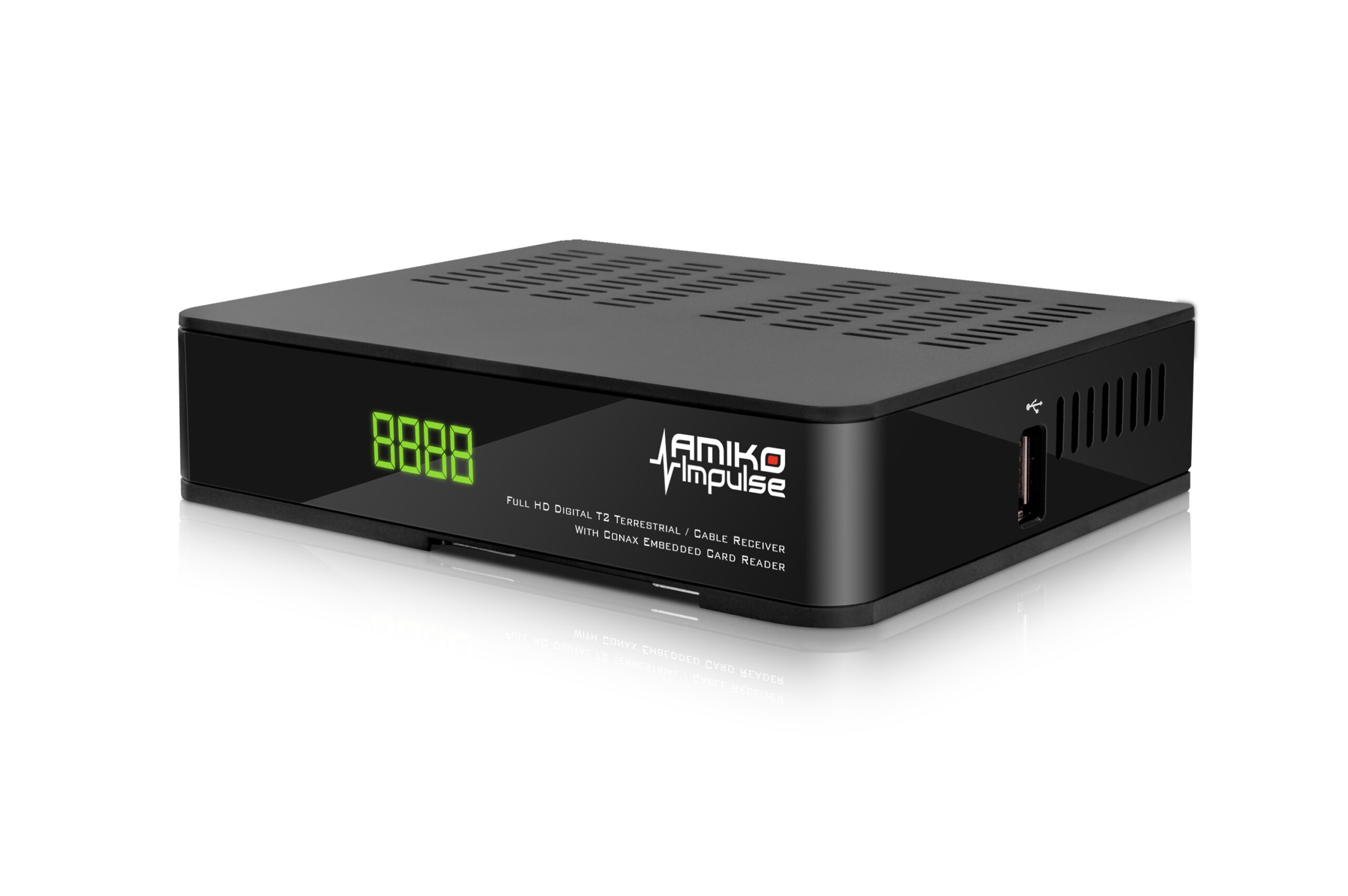

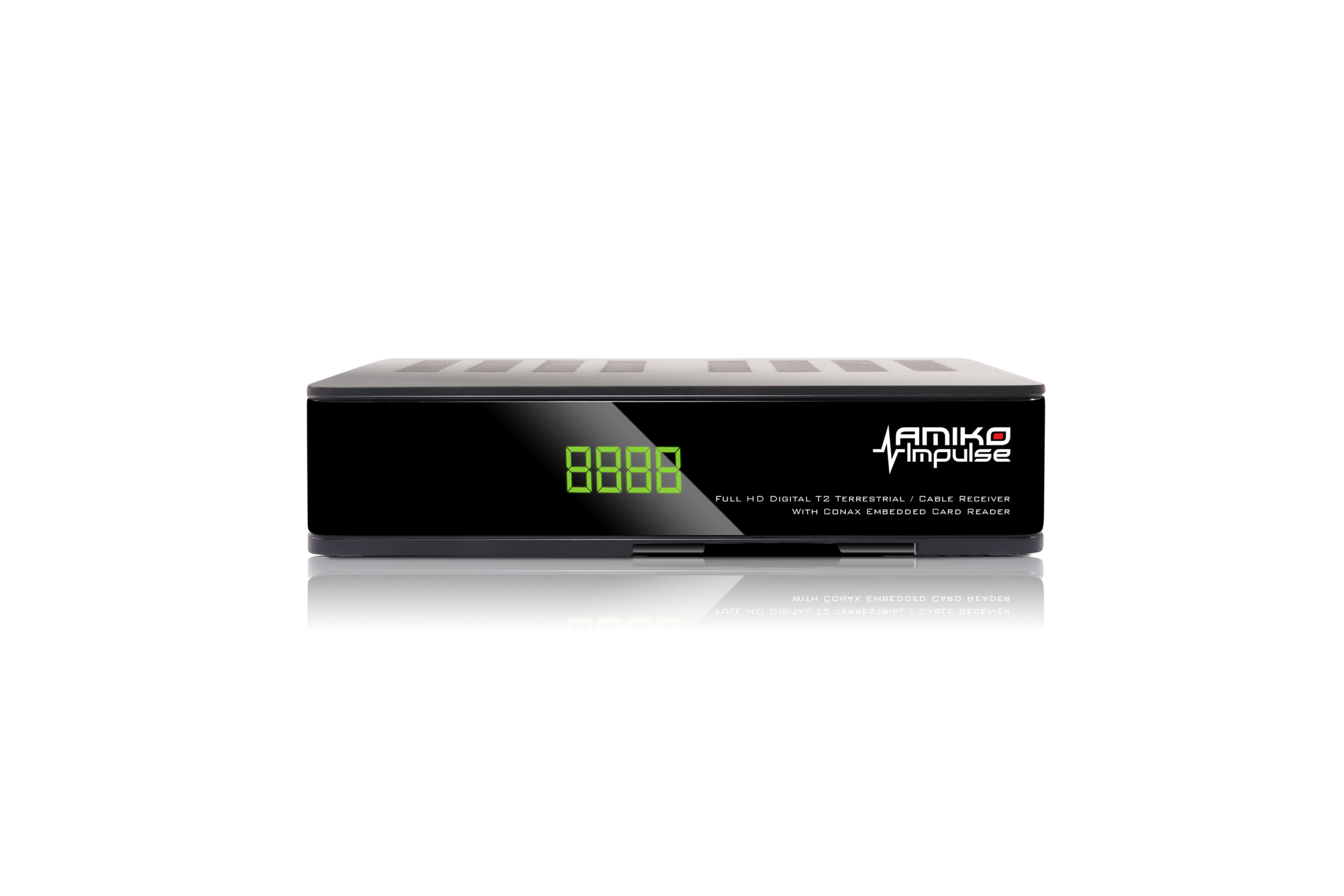

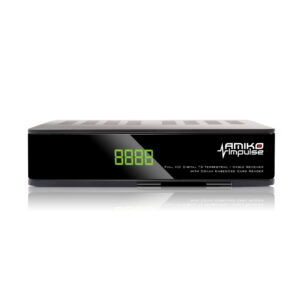

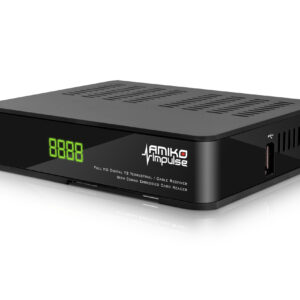

Amiko Impulse T2/C tuner és set-top box – Conax

Timeshift support

Channel Recording & Timeshifting Simulteniously (optional)

Channel switching time less than 1 second

True-color, User Friendly On-Screen Display (OSD)

Full Picture In Graphic (PIG) function

Electronic Program Guide (EPG) for on screen channel information

Subtitle supported

Teletext supported by VBI insertion and software emulation

Parental lock facility by channel and program event

Program and Channel information transfer from receiver to receiver

Exciting games embedded

Multi-Language support

Power Consumption in Stand-By: <0.5W

Tuner Type: DVB-T2 / DVB-C

Frequency Range: 48~862MHz

RF Input Level: -80dBm to -20dBm

Antenna power output: DC 5V at max 75mA, Overload protection

Demodulation: COFDM 1K, 2K, 4K, 8K normal and extended, 16K normal and extended, 32K normal and extended

Input Symbol Rate: 1.0 ~ 7.0Ms/s

Constellations: QPSK, 16QAM, 64QAM, 256QAM / Both rotated and non-rotated

Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128

Code Rate: 1/2, 3/5, 2/3, 3/4, 5/6

System Resources

Main Processor: Dual Core 494MHz / 337MHz

Flash Memory: 64MBits

DDR RAM: 1024Mbits

MPEG TS A/V Decoding

Transport Stream: MPEG-2, H.264

Input Rate: Max.120Mbit/s

Aspect Radio: 4:3, 16:9, Letter Box

Video Decoding: MPEG-2, MP@ML, MPEG-4 part 10/H264

Video Resolution: 720*480P/I, 720*576P/I, 1280*720p, 1920*1080i, 1920*1080p

Audio Decoding: MPEG-1 layer I/II, MPEG-2 layer II, Dolby digital

Audio Mode: Left / Right / Stereo/ Mono

Sampling Rate: 32, 44.1 and 48KHz

Power Supply

Input Voltage: 5V DC

Power Consumption: 18W Max

Stand-By Power Consumption: <0.5W

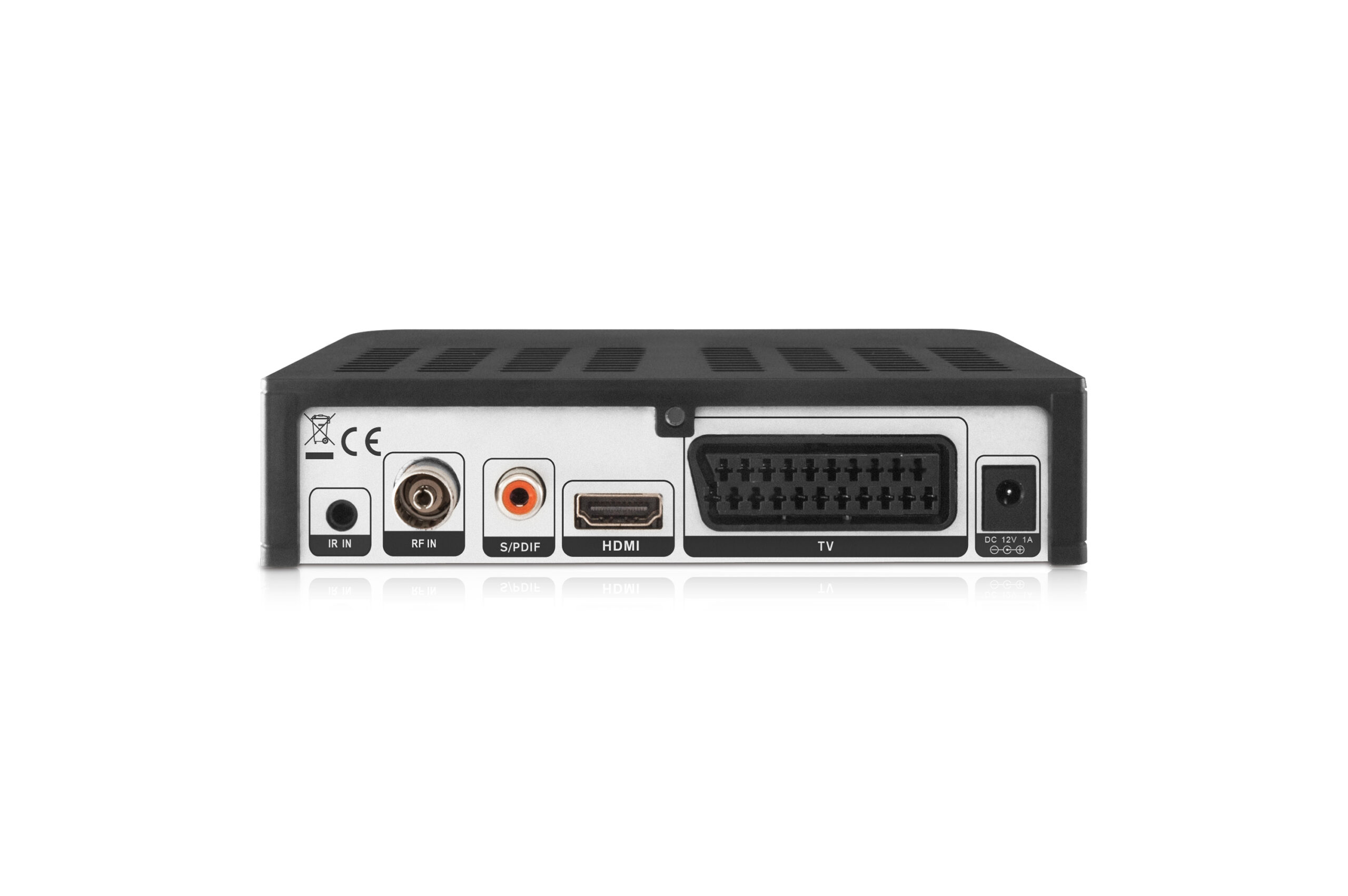

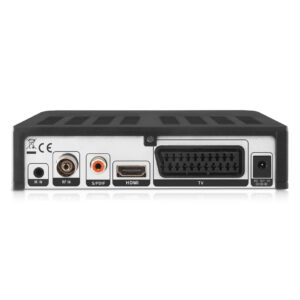

A/V & Data Input/Output

SCART: CVBS Video out / Audio L/R out

USB: One USB 2.0 slot

S/PDIF: Coaxial

Digital Video Output

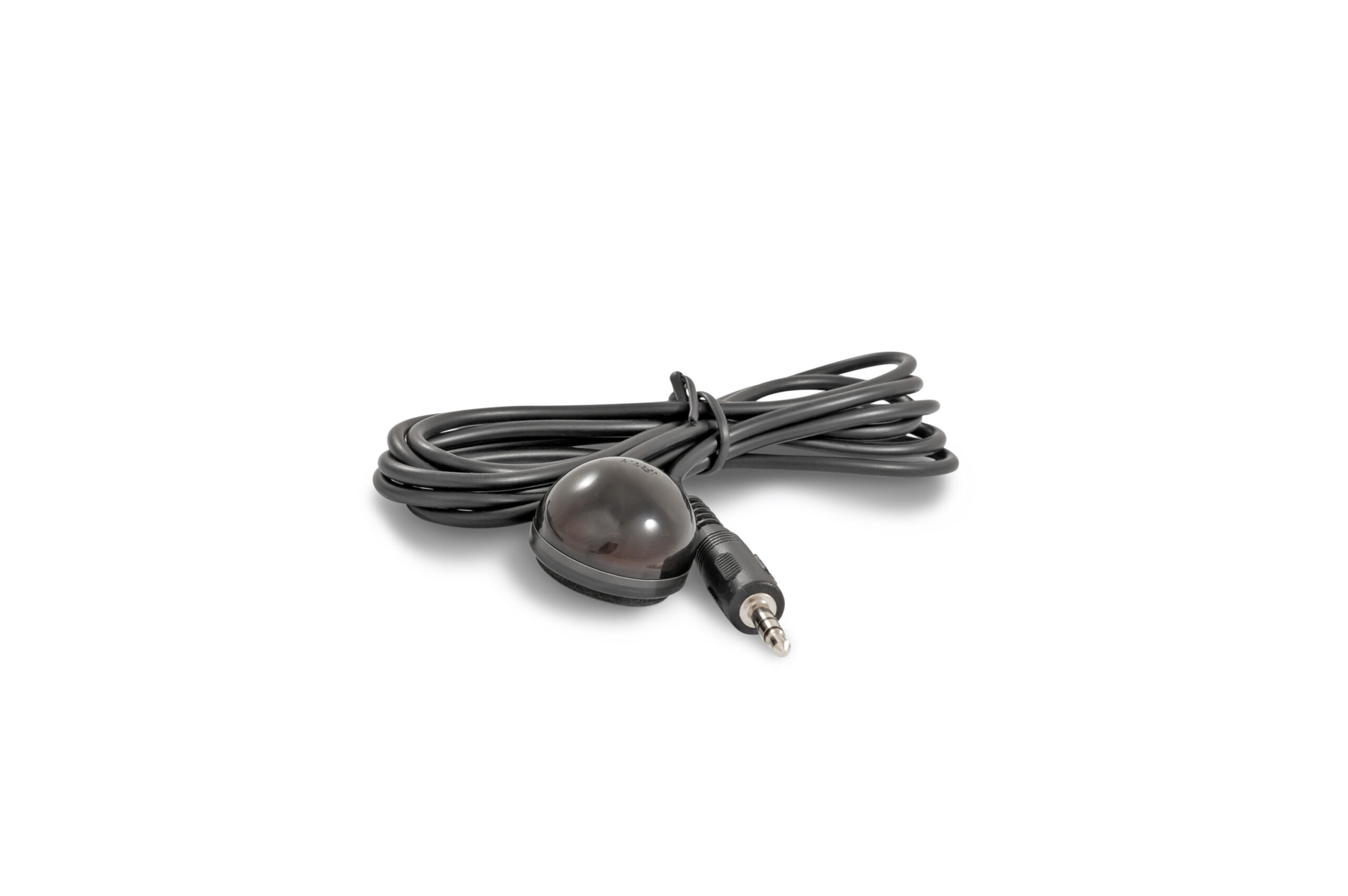

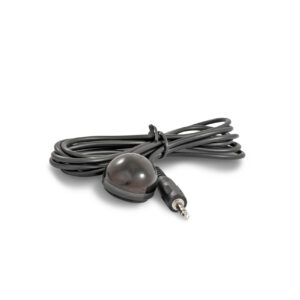

IR Port: Internal & Jack Type

Physical Specifications

Size: 144mm*40mm*110mm

Net Weight: 0.25KG

Operation Temperature: 0°C~+45°C

Storage Temperature: -10°C~+70°C

Storage Humidity: 5%~95% RH (Non-Condensing)
