1.Built-in Bluetooth receiver module and supports mobile device Bluetooth connection.
2. Supports digital audio conversion to analog audio signals.
3. Built-in high-performance DAC chip, supports 192K/24bit sampling rate.
4. Adopts the latest Bluetooth version 5.0 lossless transmission technology.
5. Adopts Bluetooth dedicated antenna for stable signal transmission.
6. Automatically switch to Bluetooth playback mode after successful Bluetooth connection.

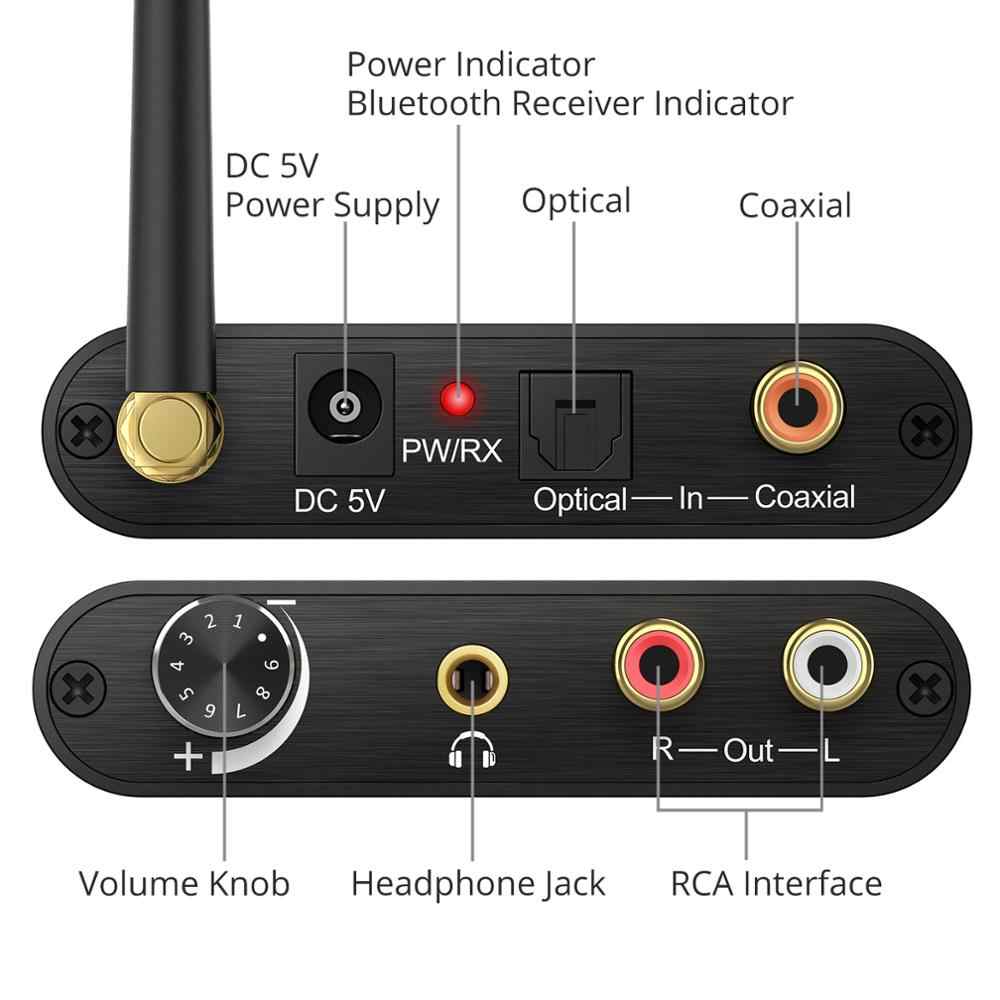

7. Supports one optical and one coaxial input interface.
8. Supports one RCA and one 3.5mm audio output interface.
9. Supports output volume adjustment.
10. Ultra low power consumption.
Specifications:
Audio Formats: PCM/LPCM
Audio Sample Rate: 32~192K
Bluetooth Audio Sample Rate: 32~48K
Bluetooth Version: 5.0 Version
RCA output maximum level: 1.2Vrms
3.5mm audio interface maximum output level: 2Vrms
3.5mm audio port maximum output power: 30mW
Maximum working current: 5V/60mA
Working environment temperature: -10~+55°C
Storage environment temperature: -26~+60°C
Working environment humidity: 10~90%RH (no condensation)
Storage environment humidity: 5~95% RH (no condensation)
Dimension: 82 x 59 x 19 mm
Bare weight weight: 123g
Shell material: Aluminum Alloy
Color: Black

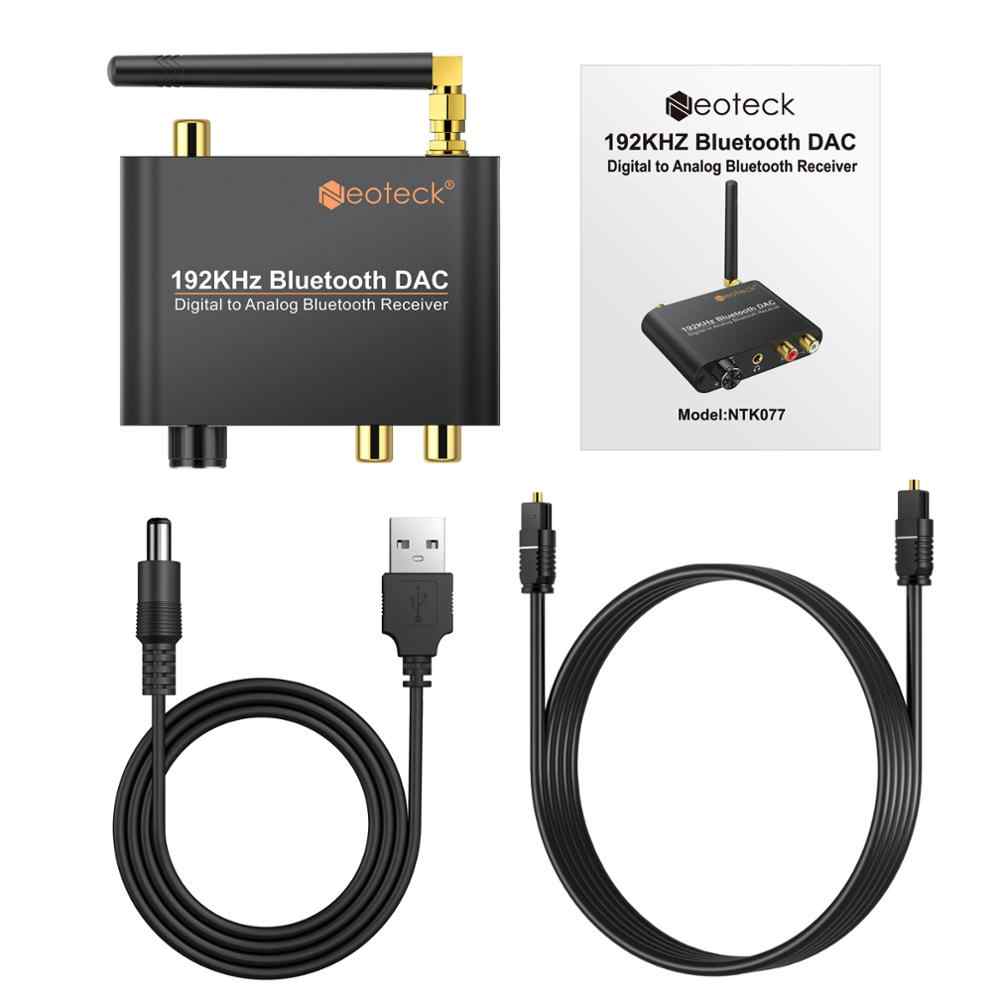

Package：
1 x 192kHz Bluetooth DAC Converter
1 x 1m Optical Cable
1 x USB Power Cable
1 x User Manual
