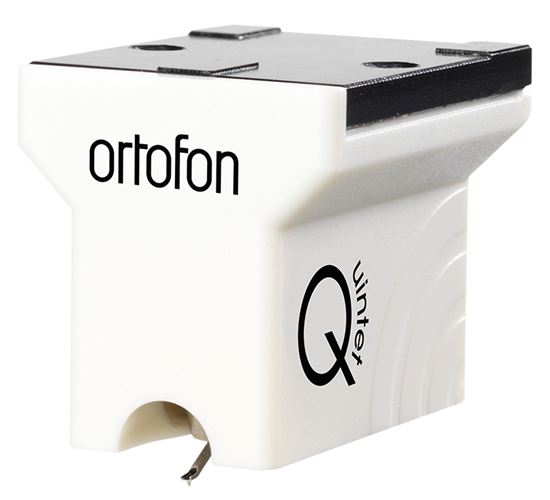

MC Quintet Mono Technical data:
Output voltage at 1 kHz 5 cm/sec – 0.3 mV
Frequency range at -3 dB – 20-25.000 Hz
Frequency response 20 Hz – 20 kHz – +/-2.0 dB
Tracking ability at 315 Hz at recommended tracking force *) – 70 μm
Compliance, dynamic, lateral – 15 μm/mN
Stylus type – Nude Elliptical
Stylus tip radius – r/R 8/18 μm
Tracking force range – 2.1-2.5 g (21-25 mN)
Tracking force recommended – 2.3 g (23 mN)
Tracking angle – 20º
*) Typical value
Internal impedance, DC resistance – 5 Ohm
Recommended load impedance – >20 Ohm
Cartridge body material – ABS/Aluminium
Coil wire material – Pure 4-nines silver/Ag
Cartridge colour – White
Cartridge weight – 9 gram
