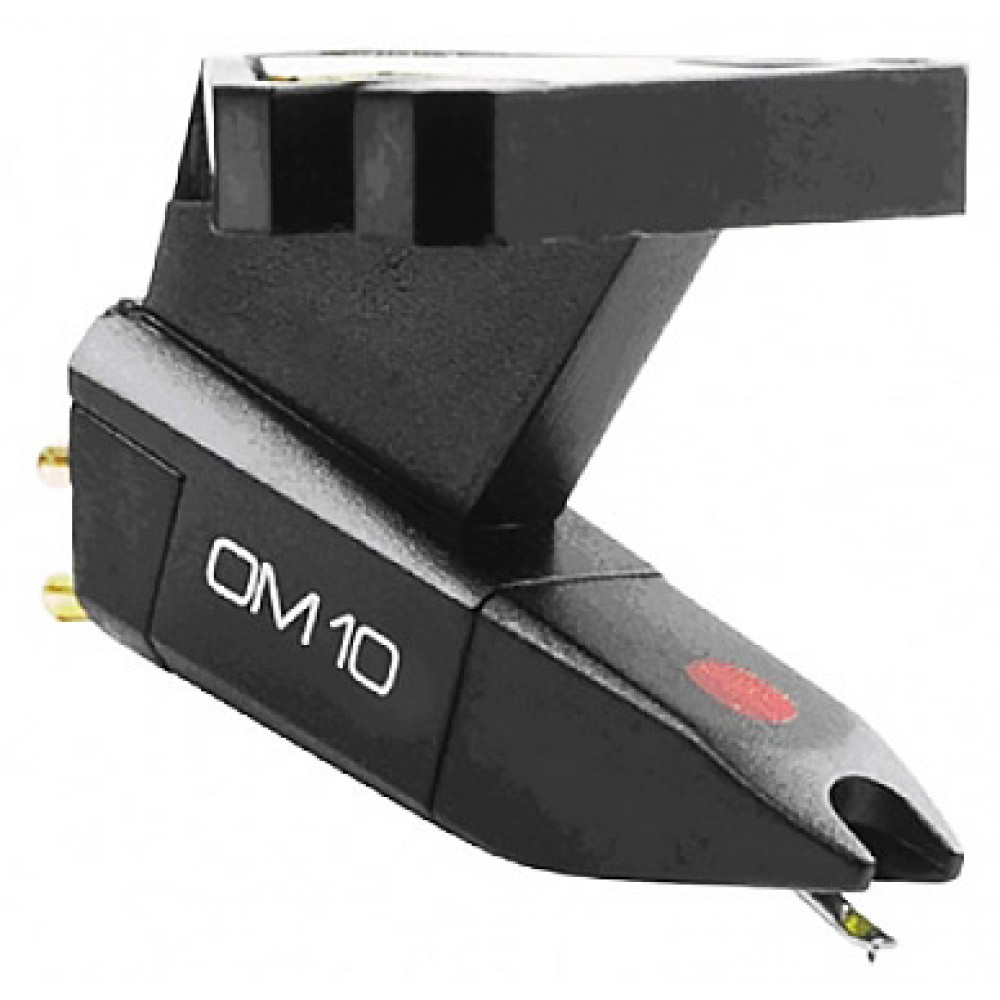

Ortofon OM 10E MM hangszedő

Technical data: OM 10E
Output voltage at 1000 Hz, 5cm/sec. – 4 mV
Channel balance at 1 kHz/dB – 2,0
Channel separation at 1 kHz/dB – 22
Frequency response Hz – 20-22.000
Tracking ability (315Hz, lateral)/µm – 70
Compliance, dynamic (lateral)/µm/mN – 25
Stylus type – Elliptical
Stylus tip radius/µm – r/R 8/18
Tracking force range/g – 1,25-1,75
Recommended tracking force/g – 1,5
Tracking angle (vertical) – 20°
Internal impedance, DC resistance/Ohm – 750
Internal inductance / mH – 450
Recommended load resistance/kOhm – 47
Recommended load capacitance/pF – 200-500
Cartridge weight – 5 g
