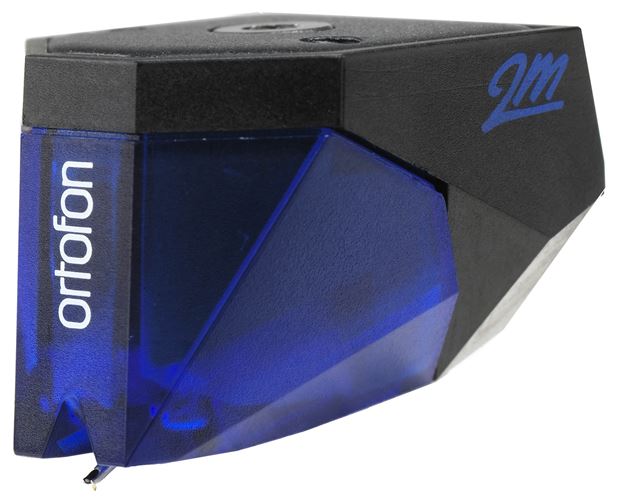

Ortofon 2M Blue – 2M Blue Verso – Nude Elliptical

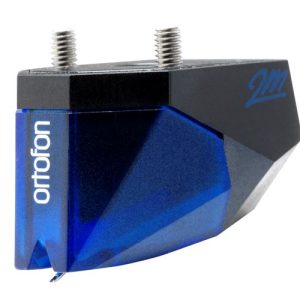

Az Ortofon 2M Blue két változatban készül:
2M Blue – 72.999.-, 2M Blue Verso – 79.999.-

Képek a galériában.

Megrendelés esetén kérjük írja be a megjegyzés rovatba melyik változatot szeretné.

2M Blue Technical data:
Output voltage at 1000 Hz, 5cm/sec. – 5,5 mV
Channel balance at 1 kHz – 1,5 dB
Channel separation at 1 kHz – 25 dB
Channel separation at 15 kHz – 15 dB
Frequency range at – 3dB – 20-25.000 Hz
Frequency response – 20-20.000 Hz + 2 / – 1 dB
Tracking ability at 315Hz at recommended tracking force – 80 µm
Compliance, dynamic, lateral – 20 µm/mN
Stylus type – Nude Elliptical
Stylus tip radius – r/R 8/18 µm
Tracking force range – 1,6-2,0g (16-20 mN)
Tracking force, recommended – 1,8 g (18 mN)
Tracking angle – 20°
Internal impedance, DC resistance – 1,3 kOhm
Internal inductance – 700 mH
Recommended load resistance – 47 kOhm
Recommended load capacitance – 150-300 pF
Cartridge colour, body/stylus – Black/Blue
Cartridge weight – 7,2 g

2M PnP MkII cartridge with integrated headshell weight – 20 g
2M PnP MkII cartridge with integrated headshell length – 52 mm

Replacement stylus unit – 2M Blue (interchangeable with 2M Red and 2M Silver)
Stylus lifetime: with proper care we find that up to 1000 hours is possible without degradation of performance. Please read about stylus care on our FAQ.

The 2M Series’ engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:
– 2M Red, 2M Blue and 2M Silver
– 2M Bronze and 2M Black
– 2M Mono and 2M 78
